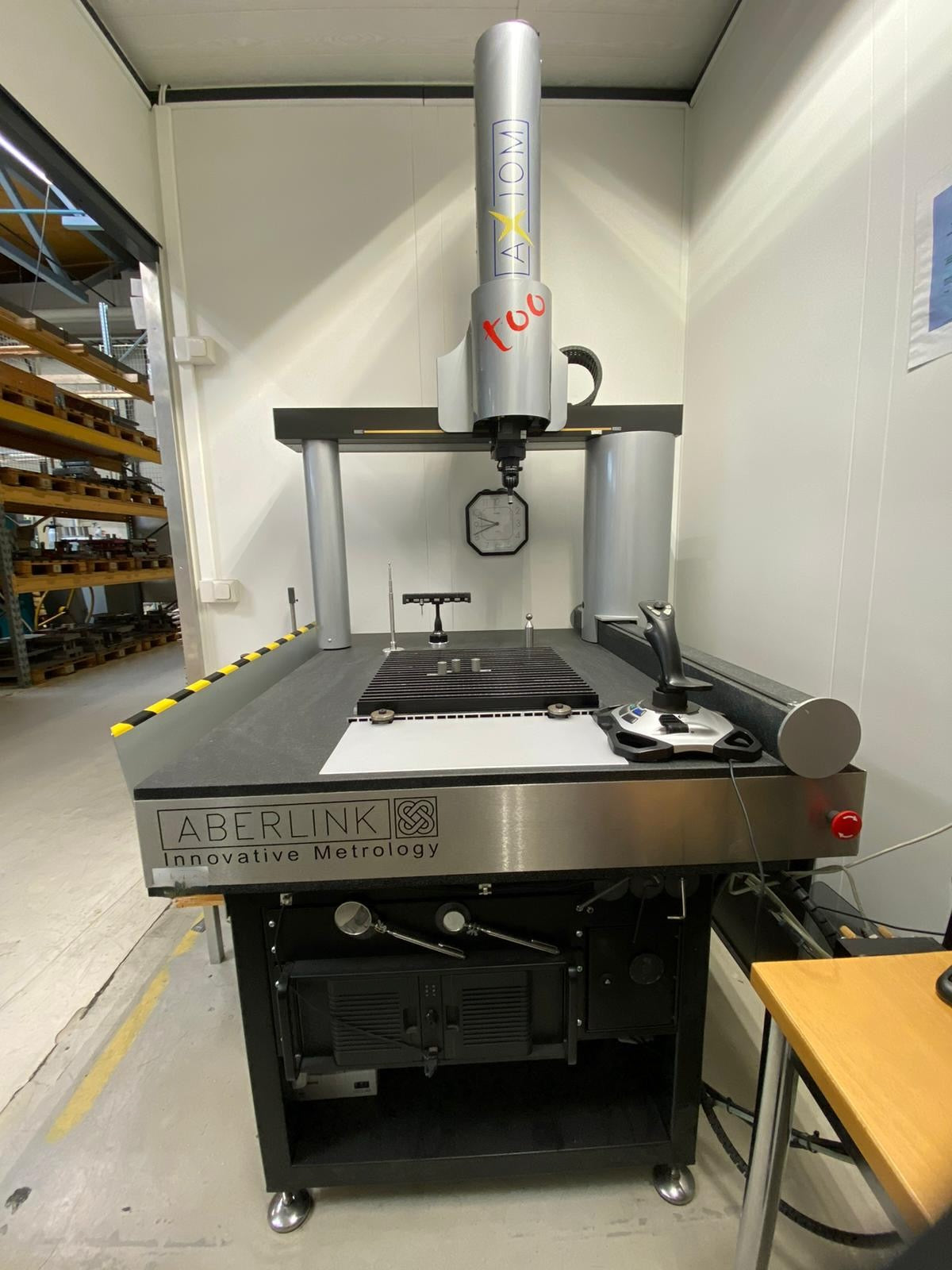

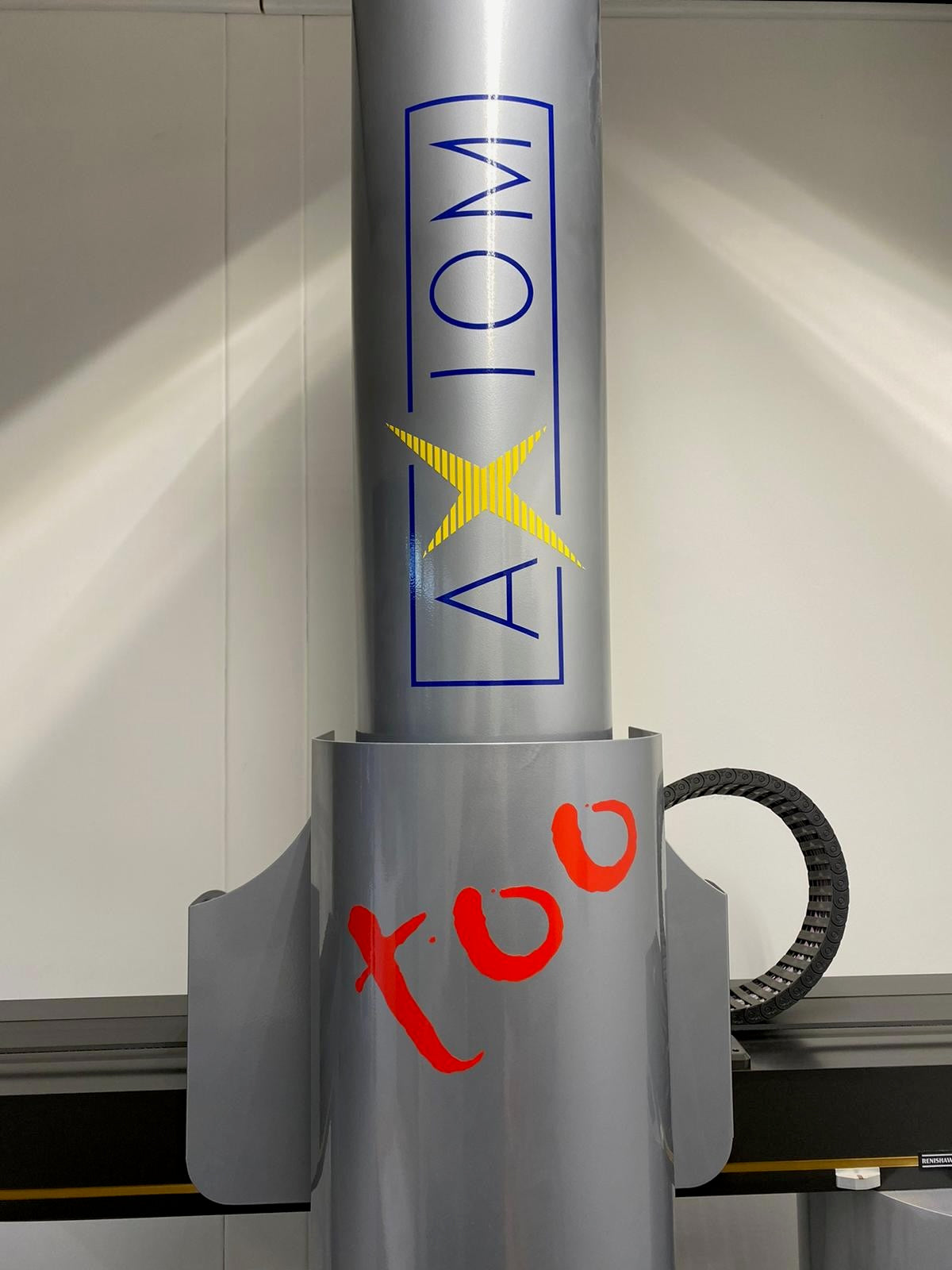

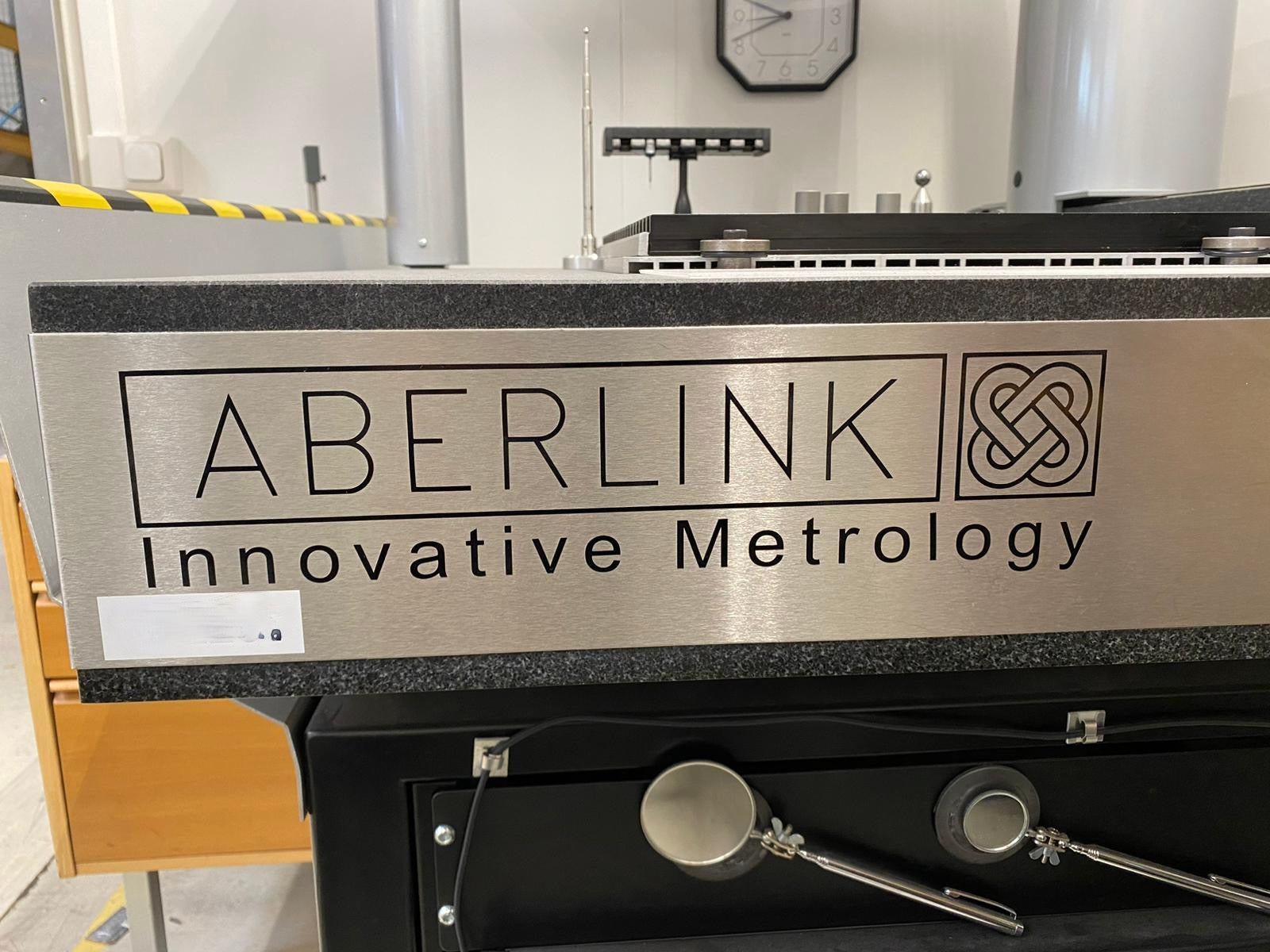

Aberlink Axiom Too CNC, CMM machine, vintage 2016

Machine is in operational condition. Last calibration done in 2022 with certification.

Has been in storage since.

Specs:



X: 640mm

Y: 900mm

Z: 500mm



Resolution: 0.0005mm standard. (Renishaw), Volumetric accuracy: B89 0.008mm/300mm, VDI(U3) 0.0029 + L/250mm

Probe Head & Measuring Tips: ABPR005 Renishaw TP8 measuring head set with indexable joint allowing stepless orientation. Four measuring tips and a measuring head extension:

1 piece straight - 4 mm ruby​​ball 1 piece straight - 1 mm ruby​​ball

1 piece straight - 2 mm ruby​​ball 1 extension piece - 20 mm stainless steel

5 pcs star pattern - 2 mm ruby​​balls (not indexable)

Aberlink3D Software ABSW001

 Control system ABCS001

Intel dual-core processor, 1 Gb RAM, 160 Gb hard drive in tower case (PC) stand

embedded. Wireless keyboard and mouse. 22" flat screen. Hewlett Packard color

inkjet printer or similar. A separate data transfer card + connected to the computer

intermediate cable for the transfer and reception of X,Y,Z axis position data.

Calibration Ball ABRB001, Diameter 3/4",  Hard Alloy

 Options included:



1. Automatic ambient temperature compensation, The USB temperature sensor embedded in the body of the measuring machine compensates temperature automatically 20 C.

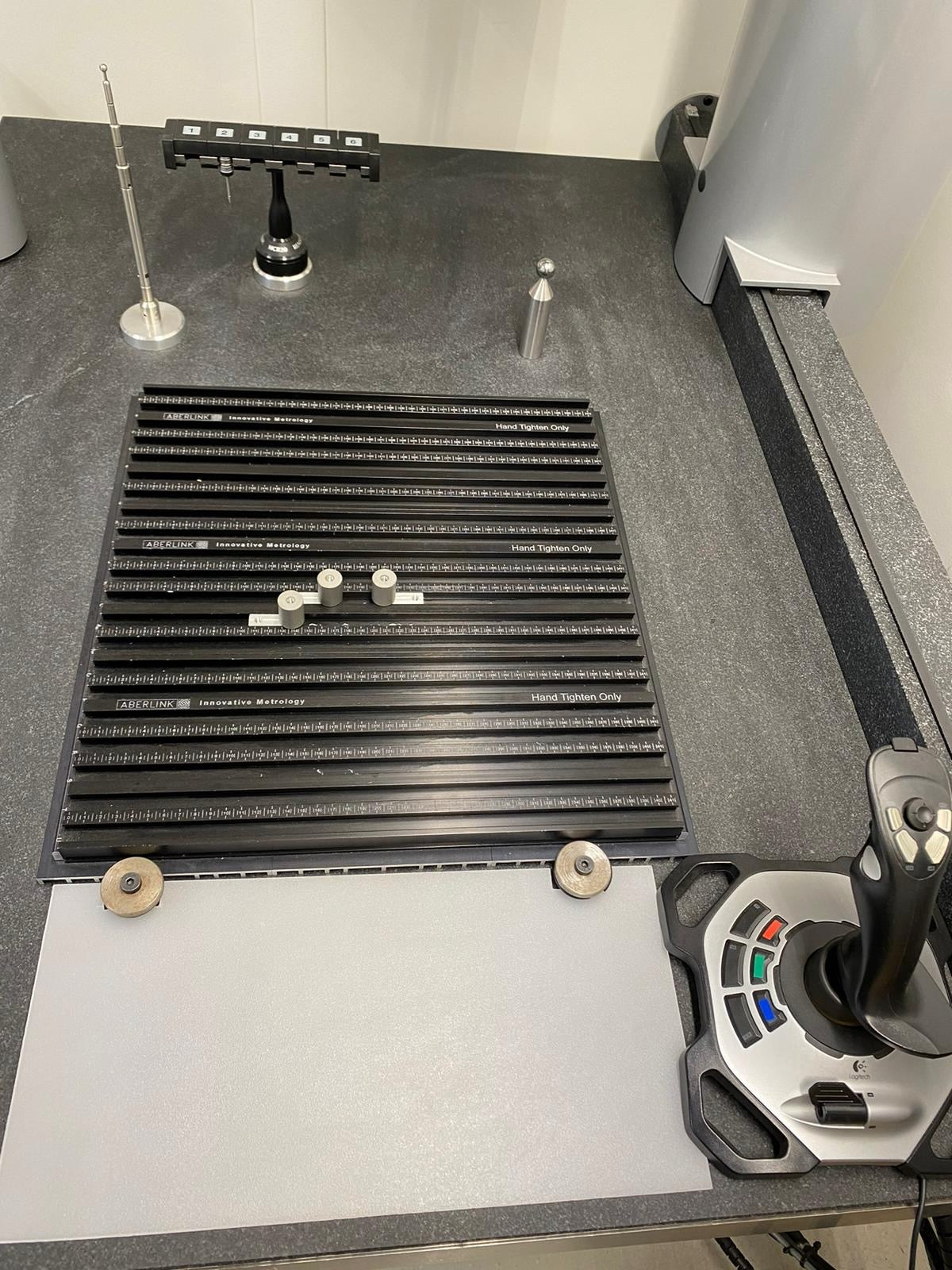

2. Fixlogix flexible fastener set, The fastener set together with the 450 x 450mm plate offer a flexible, fast and reliable attachment to parts in the machine's measuring range.
3. Renishaw RTP 20 – MCR20, RTP20 measuring head with two TP 20 modules and MCR20 with a tool changing stand with six tool slots.
